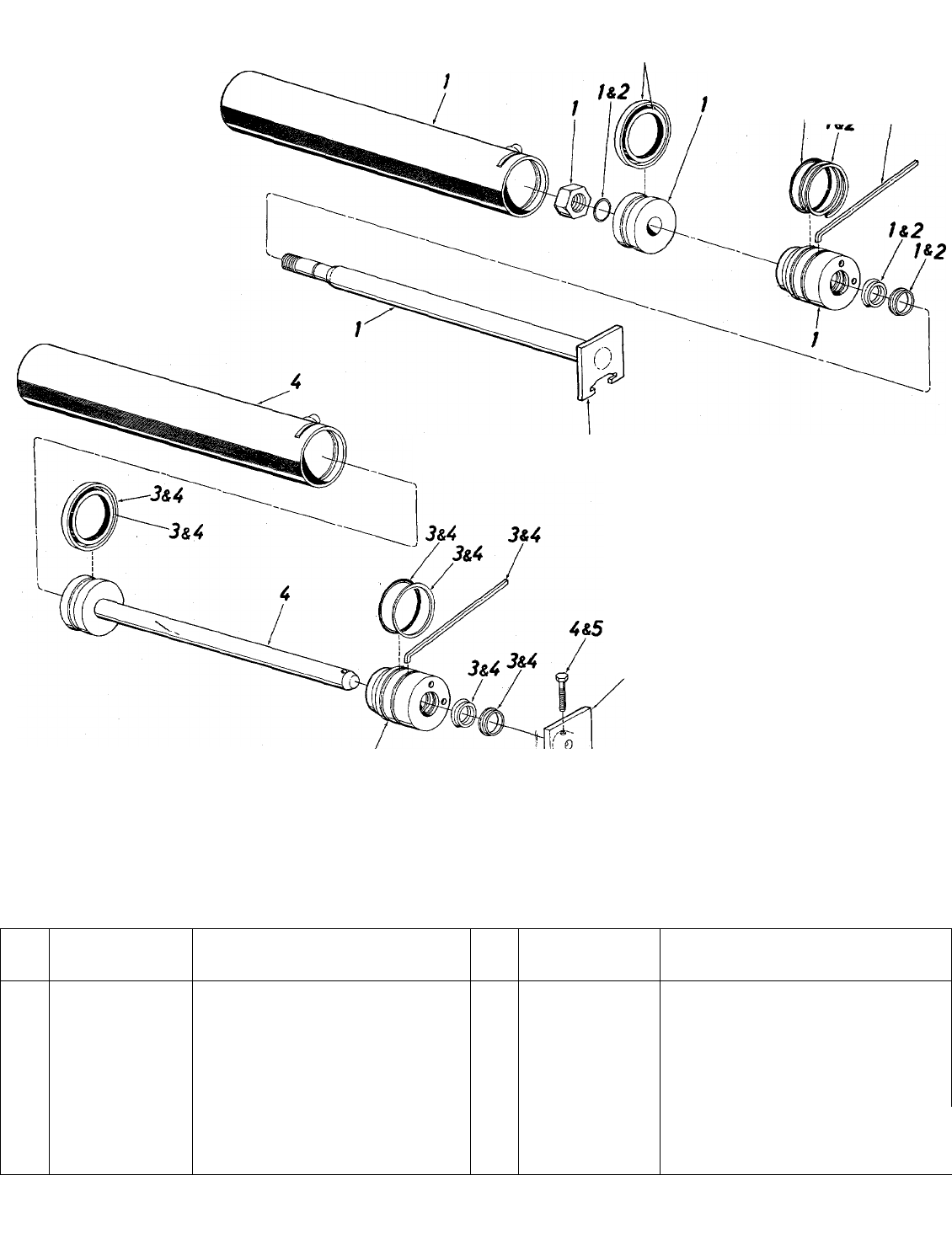

Models 642 and 645

1&2

PUSH PLATE WELDED TO

CYLINDER ROD

4&5

1^4*5

U2

PUSH PLATE REMOVABLE

3-1/2" DIA. CYLINDER

PARTS LIST FOR MODEL 642

4" DIA. CYLINDER

PARTS LIST FOR MODEL 645

Ref.

No.

PART No.

DESCRIPTION

Ref.

No.

PART No.

DESCRIPTION

1 717-0459

Cylinder Ass'y- Comp. (Welded

Push Plate)

1

717-0406 Cylinder Ass'y. Comp. (Welded

Push Plate)

2

;<753-027J_

3-1/2" Cyl. Kit "0"-Ring Set

(Welded Push Plate)

753-0263 4" Cyl. Kit "0"-Ring Set

(Welded Push Plate)

3

753-02?®

3-1/2" Cyl. Kit "0"-Ring Set

(Removable Push Plate)

3

753-0273

4" Cyl. Kit "0"-Ring Set

(Removable Push Plate)

4 717-0459

Cylinder Ass'y- Comp.

(Removable Push Plate)

4 717-0406

Cylinder Ass'y. Comp.

(Removable Push Plate)

5

753-0274

3-1/2" Cyl. Push Plate Kit

5

753-0275

4" Cyl. Push Plate Kit |

MTD PRODUCTS INC ..........................

P.O. BOX 36900

............................... VaRD-MaN COMPANY

CLEVELAND OHIO 44136
